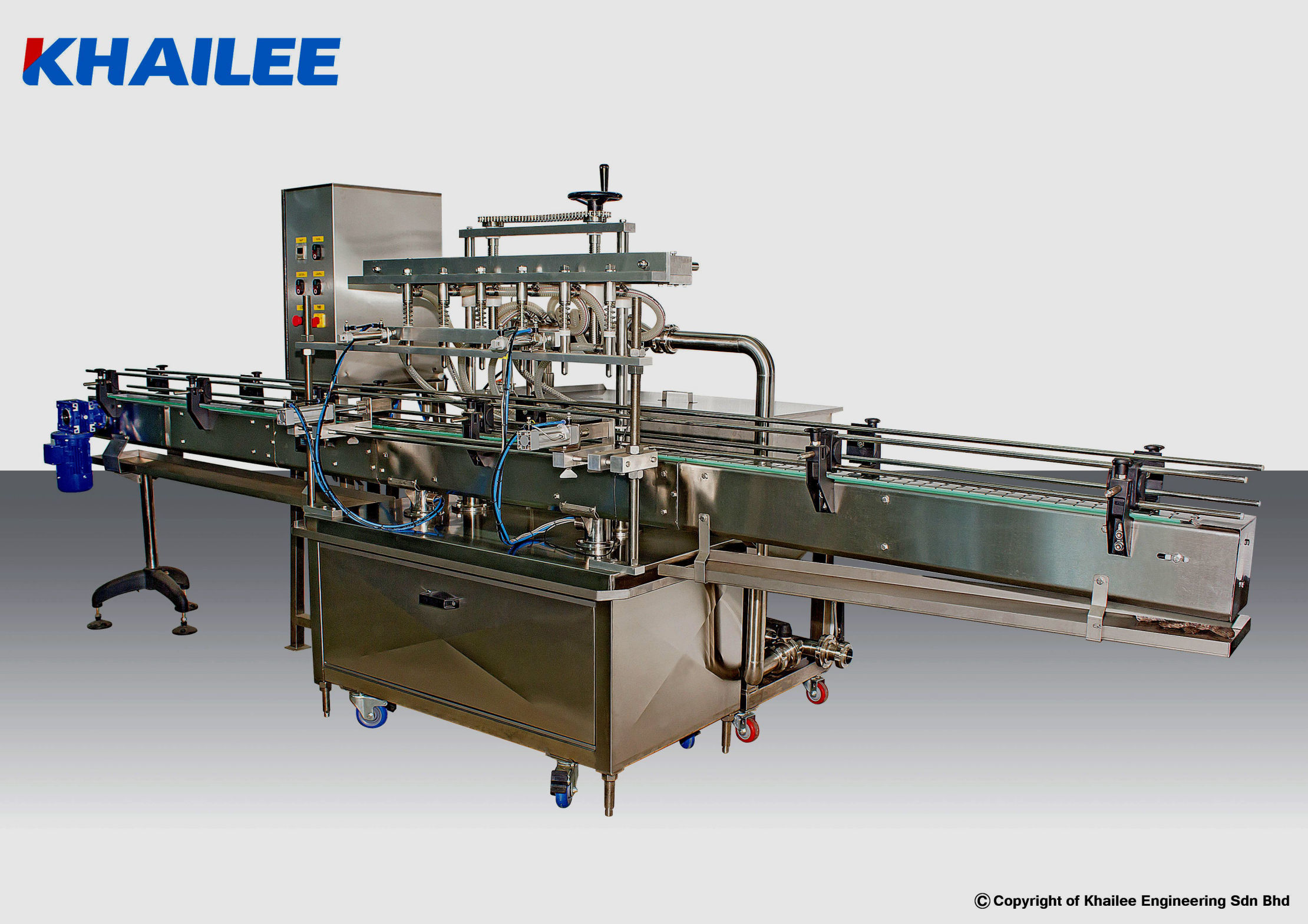

AUTOMATIC IN-LINE PRESSURE OVERFLOW FILLING MACHINE

Pressure Overflow Filling Machine is the simplest yet efficient system in handling wide range of liquid and viscous products. It is ideal for the transparent bottles which required a consistent fill level. The machine is working by a simple principle that the products flow by gravity from elevated tank to a manifold and then flow into bottles until a desired fill level based on pre-set timer. The excess product will then overflow back into a reservoir, which is then pump back into elevated tank.

Application

Liquid products, Juice, Sauces and etc.

Types of Overflow Filling System

  • Gravity
  • Vacuum
  • Pump System

Features

  • Product Contact Parts – Stainless Steel, Viton, Teflon, Sanitary and etc.
  • Fill Height Accuracy - ± 2-3mm
  • Durability – Machine of made of Stainless Steel & Use of Quality Components
  • Reliability - Low Maintenance & Stable Operation
  • PLC Control – For Ease of operation
  • Variable Speed Control - To ensure synchronization of machine and conveyor

Standard Accessories

  • Stainless Steel 304 Construction
  • Inbuilt Stainless Steel Conveyor with Adjustable Guide Rails
  • Stainless Steel Filling Tank
  • Stainless Steel Front and Back Stopper
  • Stainless Steel Drip Tray
  • Electric Control Panel

Optional

  • Hot Filling
  • Specialty Pumps, seals, and hose for unique product types
  • All contact parts made of SS316
  • In-Feed and Out-feed Turntable

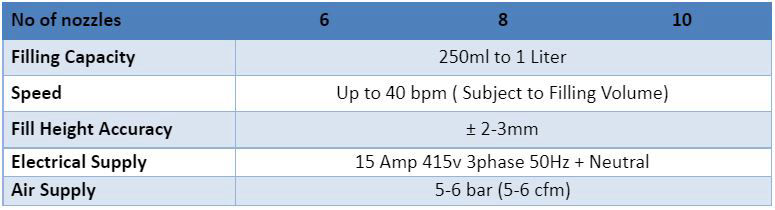

Technical Specification
