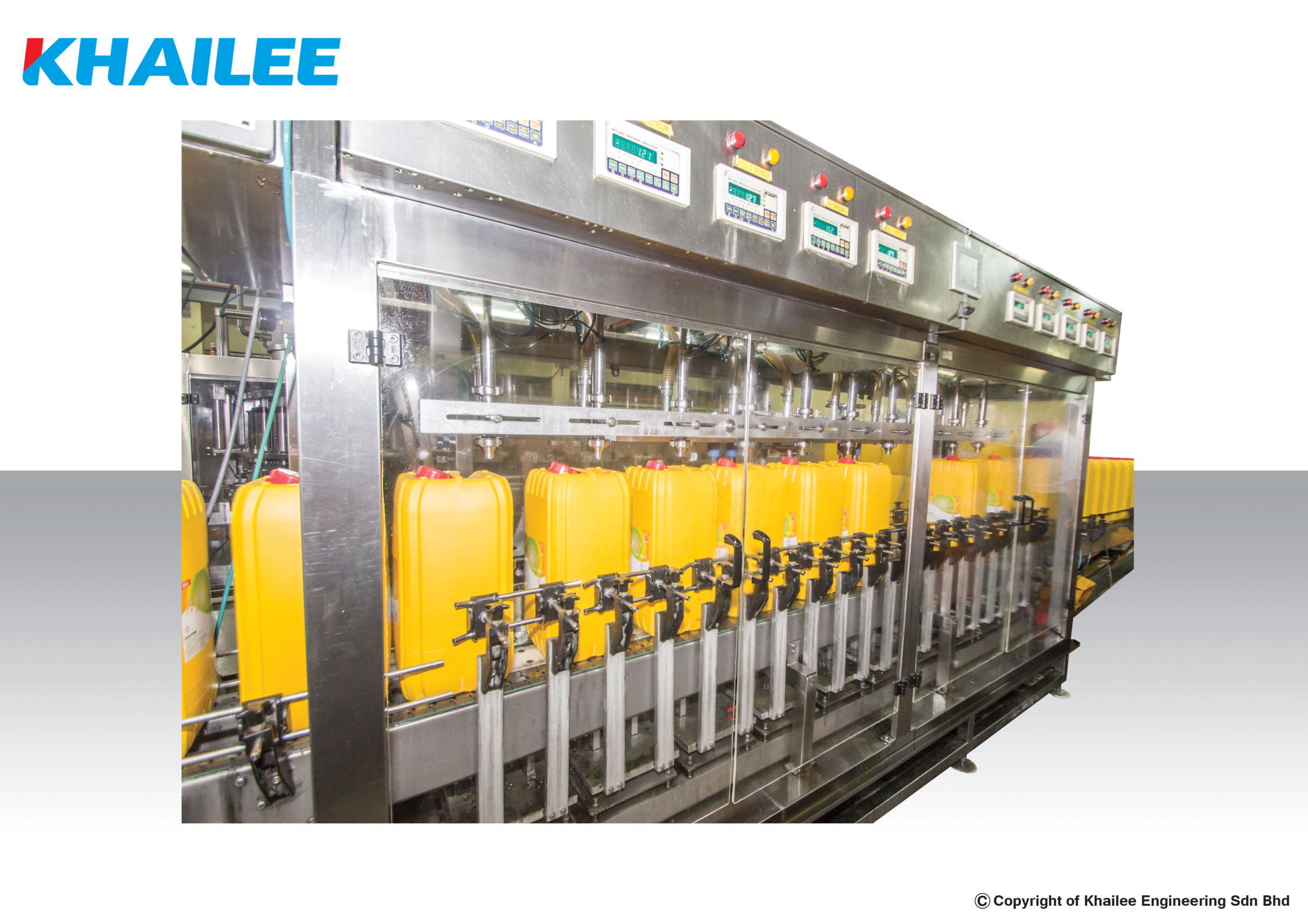

AUTOMATIC IN-LINE NET WEIGHT FILLING MACHINE

Net Weight Filling Machine is using weight scale based principle and thus providing high filling accuracy. The working principle is that the products will flow from the Filling Tank by gravity or pump to filling nozzles, and products will be fed into the container where it is mounted on a load cell, once the pre-set weight is reached, the pneumatic control filling nozzles will be ceased automatically. Net-Weight Filler is generally used for products with high manufactured value.

Application

Liquid Products with high manufactured value

Features

  • Contact Parts - Stainless Steel, Viton, Teflon and etc.
  • Accuracy - ± 0.25 %
  • Durability - Machine of made of Stainless Steel & Use of Quality Components
  • Reliability - Low Maintenance & Stable Operation
  • PLC Control - For Ease of operation
  • Variable Speed Control - To ensure synchronization of machine and conveyor

Standard Accessories

  • Stainless Steel 304 Construction
  • Inbuilt Stainless Steel Conveyor with Adjustable Guide Rails
  • Stainless Steel Filling Tank
  • Load Cell & Load Cell Indicator
  • Stainless Steel Front and Back Stopper
  • Stainless Steel Drip Tray
  • Touch Screen Control Panel

Optional

  • Hot Filling
  • Specialty Pumps, seals, and hose for unique product types
  • All contact parts made of SS316
  • In-Feed and Out-Feed Turntable

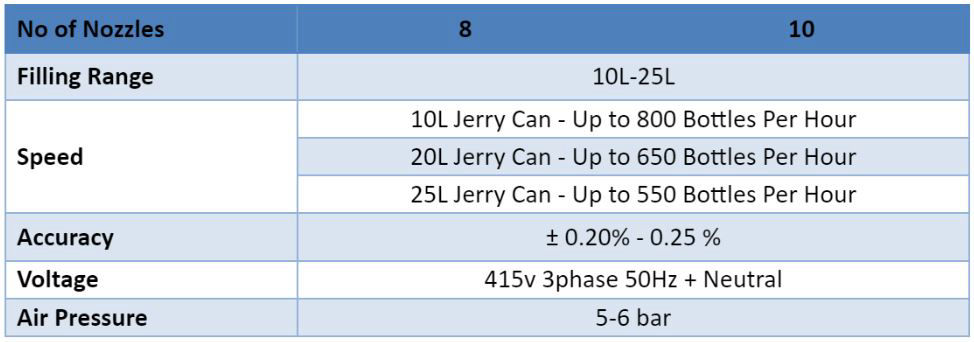

Technical Specification
