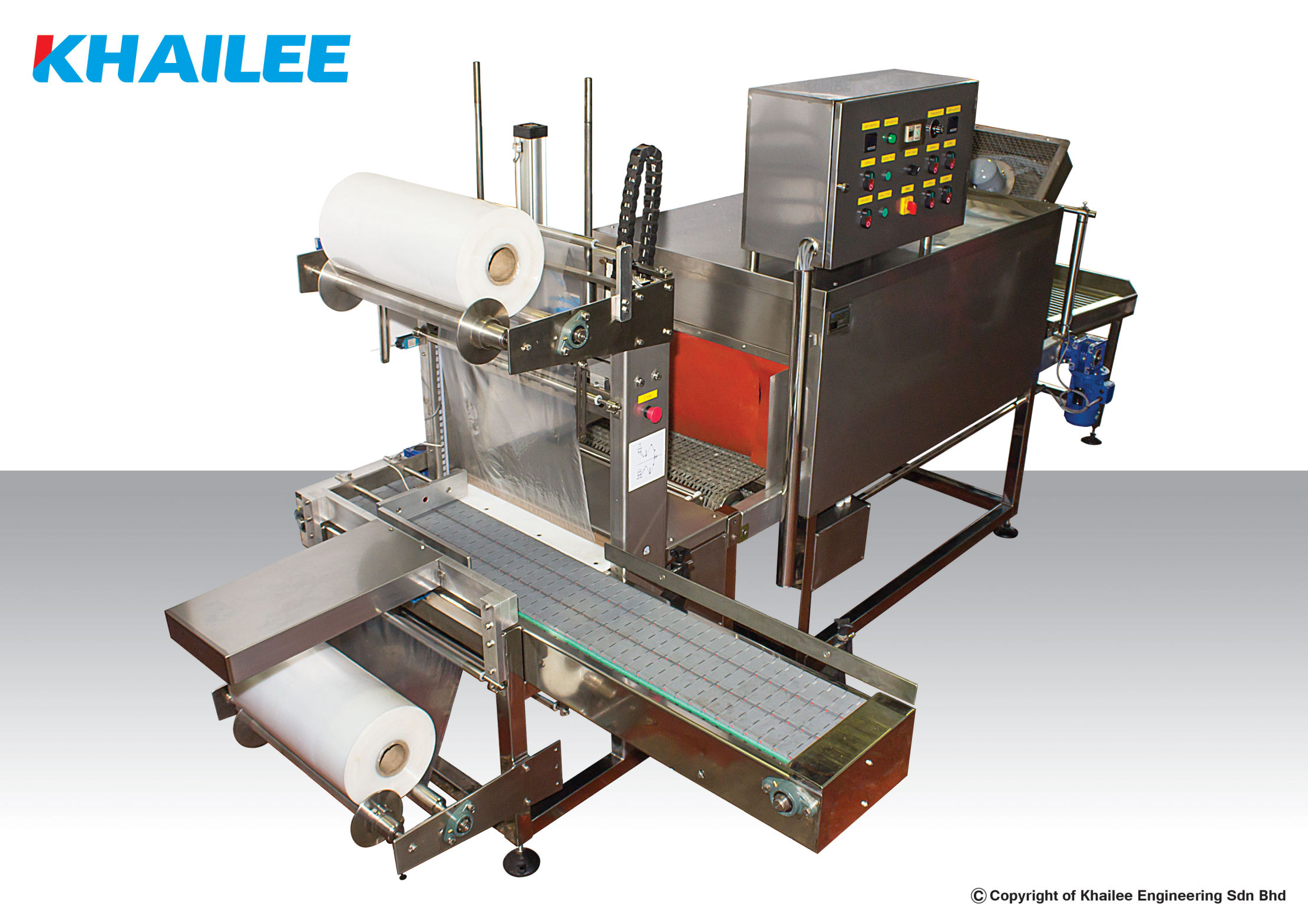

AUTOMATIC SHRINK WRAP MACHINE

Our shrink wrapping machine is designed in an L-shape, this machine features automatic carton feeding, film dispensing, sealing, cutting and shrink wrapping. It comes with both in-feed and out-feed conveyor, film dispensing system, sealing &cutting bar and shrink tunnel. This machine is to shrink wrap different type of product in carton. It is ideal for medium to high volume packing needs.

Operating Principle

The carton that to be shrink wrapped is placed on moving conveyor belt
The carton will pass through the film roll by a pusher and the PE film will be subsequently cut and sealed from two opposite sites. The film roll is at the top and bottom of the machine
Once the sleeve is formed, it enters a heat shrink tunnel where the film is then tightly shrunk
At the exit of shrink tunnel, a cooling fan is installed to shrink the shape quickly
Lastly, the carton will be conveyed out with the aid of out-feed roller conveyor

Features

Reliability – Low Maintenance & Stable Operation
Durability – Made of high grade of stainless steel
Special Cut and Seal Bar – Produce fine cutting and sealing without sticking
Film Feeding – Automatic film dispensing to minimize wastage
Heat Tunnel – Provide sufficient heat to produce fine shrink wrap effect
Electric Control Panel – Easy to operate
Machine Orientation – Left or Right

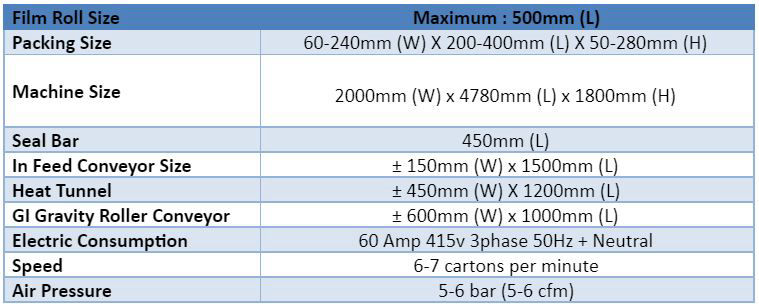

Technical Specification
